Fiamma F45 Eagle 400 Awning - Wall Mounted / Legless


Sale price£1,699.00


New automatic extra-strong awning, with no legs, for motorhomes, provided with Wind Detective System, wind sensor

The Fiamma F45eagle motorised awning is suitable for wall installation on motorhomes. This model is made up of a Polar White 416cm aluminium casing, housing a Royal Grey awning fabric that extends out to 250cm.

Fitted with a compact 12V motor, this awning is easily operated using the supplied wall mountable. The motor kit also allows manual closing in case of an emergency.

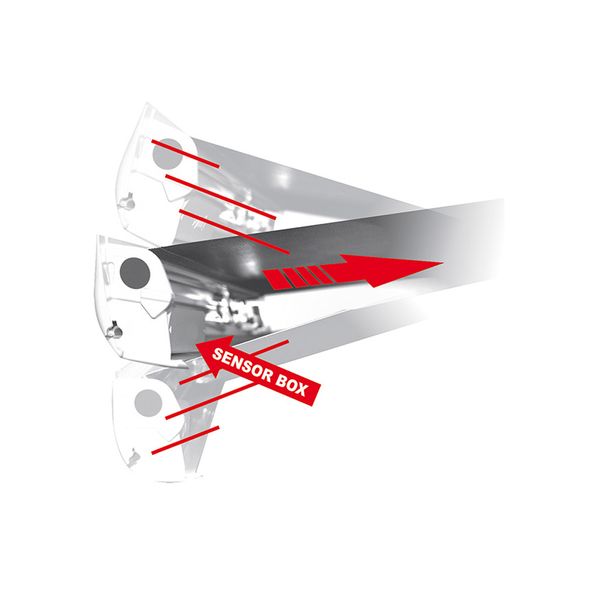

The integrated Wind Detection System sensor automatically activates the 12V motor in high winds, closing the awning to avoid possible damage.

The self-supporting arms are reinforced with a duralumin support block, strengthening and keeping the canopy taught without the need for support legs.

The angle of inclination of the supporting arms is prefixed at 10 degrees but can be altered to suit the height of motorhome from 5 degrees to 17 degrees, ensuring the correct flow of water over the canopy.

A double guide in the awning’s front lead bar allows for the installation of two optional front panels and other accessories. LED cable ducts on the awning’s arms allow for the passage of cables for optional LED light kits.

Standard delivered with:

  • 12V motor,
  • bracket,

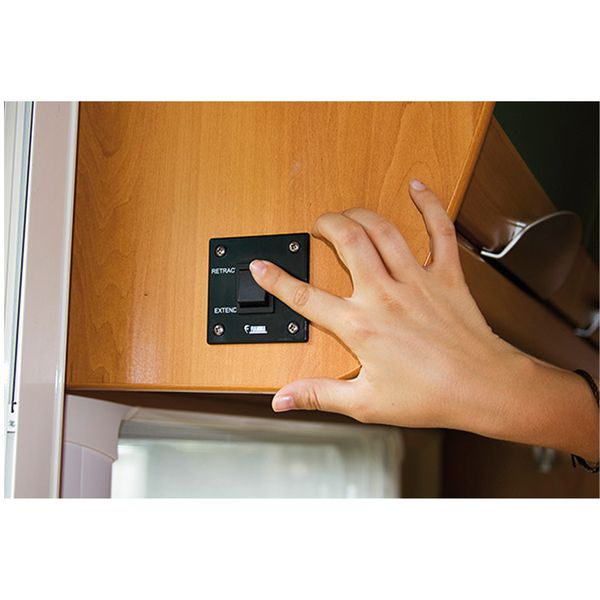

  • wall switch
  • wind sensor

Key Features

  • Equipped with a 12V motor for motorised operation
  • UV-resistant, waterproof, washable vinyl fabric canopy
  • Roller supports facilitate the rolling of the fabric and ensure it rolls in the correct direction
  • Presto Fix guarantees perfect closure of the lead bar
  • A double guide allows for optional front panels and other accessories to be added
  • LED cable ducts on the arms allow for optional LED light kits to be added
  • A Wind Detection System sensor automatically activates the motor to close the awning in case of strong wind
  • Standard installation adapter included
  • Lengths from 350 to 450


  • Case finish: Polar White
  • Fabric colour: Royal Grey
  • Awning Length (A): 416cm
  • Fabric length (B): 385cm
  • Extension Length (C): 250cm
  • Shade Surface: 9.6m²
  • Weight: 36.5kg

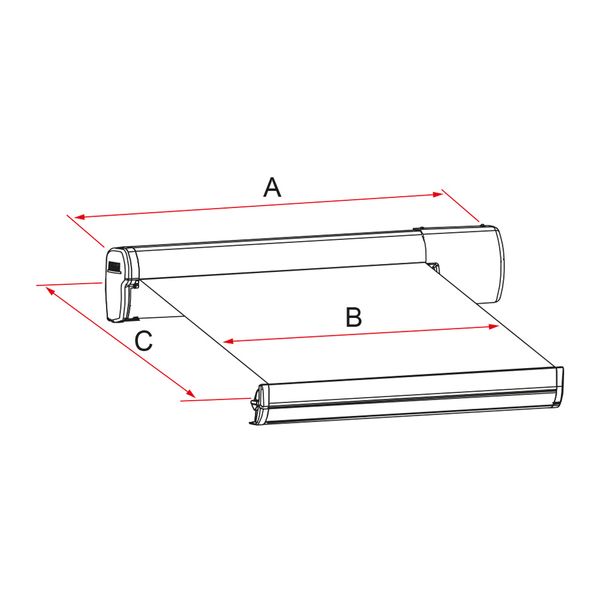

* See image for above A, B and C measurements

Dedicated installation brackets are available for this awning.

For support finding a suitable bracket, please contact our DC team.


Verify with your trusted dealer if the motorhome or caravan is suitable for the installation of the F45Eagle. The vehicle must be robust enough to support the weight and the tension of the open awning. Fiamma & DC refuses all responsibility for damages to the walls or for water ingress due to incorrect installation or installation on weak walls.
