Description

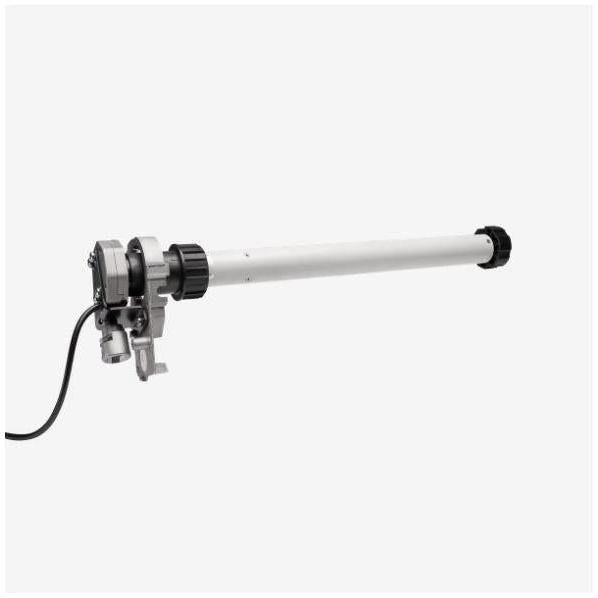

Motor Kit for Thule Omnistor 8000 Awnings
Retrofit installation either 230V or 12V with an Inverter
• Ease of use
• Security operation
Specifications
• 230 VAC EM (= electronical-mechanical limit switch) motor
• Includes remote control and control box
• A control box ensures that the awning cannot be opened whilst the vehicle is moving
• Simple connection to a 230 VAC supply (with a 12V connection use a 300 Watt inverter, which is available at your dealer)
• Settings are set by an electronical limit switch (closed position) and a mechanical limit switch (open position) so that the frame always closes correctly
• Manual override with a handcrank so that the awning can be operated at any time, even during a power failure
• Use an inverter which meets these specifications:
- Intput: 10-15 V DC
- Output: 230 VAC/50Hz
- Capacity: 300W permanent, 600W max
- Efficiency (for rectangle wave): min. 90%
• The D+ connection is included in the control box
• Possibility to operate the motor unit by a wired switch connection*
• Measurements control box: 160 x 92 x 51 mm
- Cable length motor: 5m
- Power supply: 3x 1,5 mm2
• EMC approved
• Motor with thermal protection
* Monostable switch required (ON)-OFF-(ON)/ (NC)-NO-(NC)
Awning will open completely with one touch
