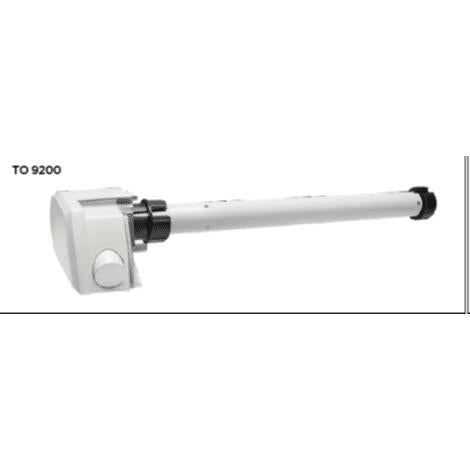

The Thule Motor Kit 230V EM is designed to automate your Thule Omnistor 9200 setup, offering smooth and reliable electric operation with added peace of mind.

Supplied with a remote control and control box, it prevents the awning from being opened while the vehicle is in motion. Electronic and mechanical limit switches ensure accurate opening and closing every time, while a manual hand-crank override allows continued use during power loss. It’s a dependable upgrade for convenient, controlled awning operation.

Product Specification

• 230 VAC EM (= electronical-mechanical limit switch) motor

• Includes remote control and control box

• A control box ensures that the awning cannot be opened whilst the vehicle is moving

• Simple connection to a 230 VAC supply (with a 12V connection you can use a 300 Watt inverter)

• Settings are set by an electronical limit switch (closed position) and a mechanical limit switch (open position) so that the frame always closes correctly

• The manual override can easily be done with a handcrank so that the awning can be operated at any time, even during a power failure

• Use an inverter which meets these specifications:

  • Input: 10-15 V DC

  • Output: 230 VAC/50Hz

  • Capacity: 300W permanent, 600W max

  • Efficiency (for rectangle wave): min. 90%

• The D+ connection is included in the control box

• Possibility to operate the motor unit by a wired switch connection* (monostable switch required)
• Measurements control box: 160x92x51 mm

• Cable length motor: 5 m

• Power supply: 3x 1,5 mm2

• EMC approved

• Motor with thermal protection

Instructions

An instruction manual for this product can be found here!
