Description
Combination space and water heater with integrated heating elements
Truma Combi 4E combines all the benefits of Combi 4 with those of an electric heater. As opposed to Truma Combi 4, it also has integrated heating elements. This allows you to run the heater at campsites with the 12V power supply unit without the vehicle battery. Combi 4 E uses very little electricity. The heater runs in gas mode for self-sufficient use, in electrical mode at the campsite, and in mixed mode when outside temperatures are low. In summer, Truma Combi 4 E heats just the water without running the space heater.
Like all Combi models, Truma Combi 4E also combines space and water heating in one appliance. The heater provides comfortable warmth in your vehicle in just a few minutes. It also heats the water that you need for showering, washing dishes, or washing your hands. And the best thing about it: is you only have to install one appliance in your caravan or motor home. This saves space and weight: as opposed to an S heater, there are no obstacles that you have to walk around in your vehicle.
- Digital CP plus iNet ready control panel: automatic climate control in combination with a Truma air conditioner
- FrostControl automatically empties the water tank in cold weather
- With integrated heating elements for additional electrical mode
- Heats the vehicle and water very quickly
- Uses little energy
- Many installation options as it is extremely lightweight and compact
- The warm air from Combi 4 E is distributed optimally via four air outlets
- Gas, electrical and mixed modes are possible
Two functions:
Truma Combi 4E combines two functions: it is a space heater and water heater in one appliance.
Easy to adjust:
Simply set the room and water temperatures on the digital Truma CP plus iNet ready control panel.

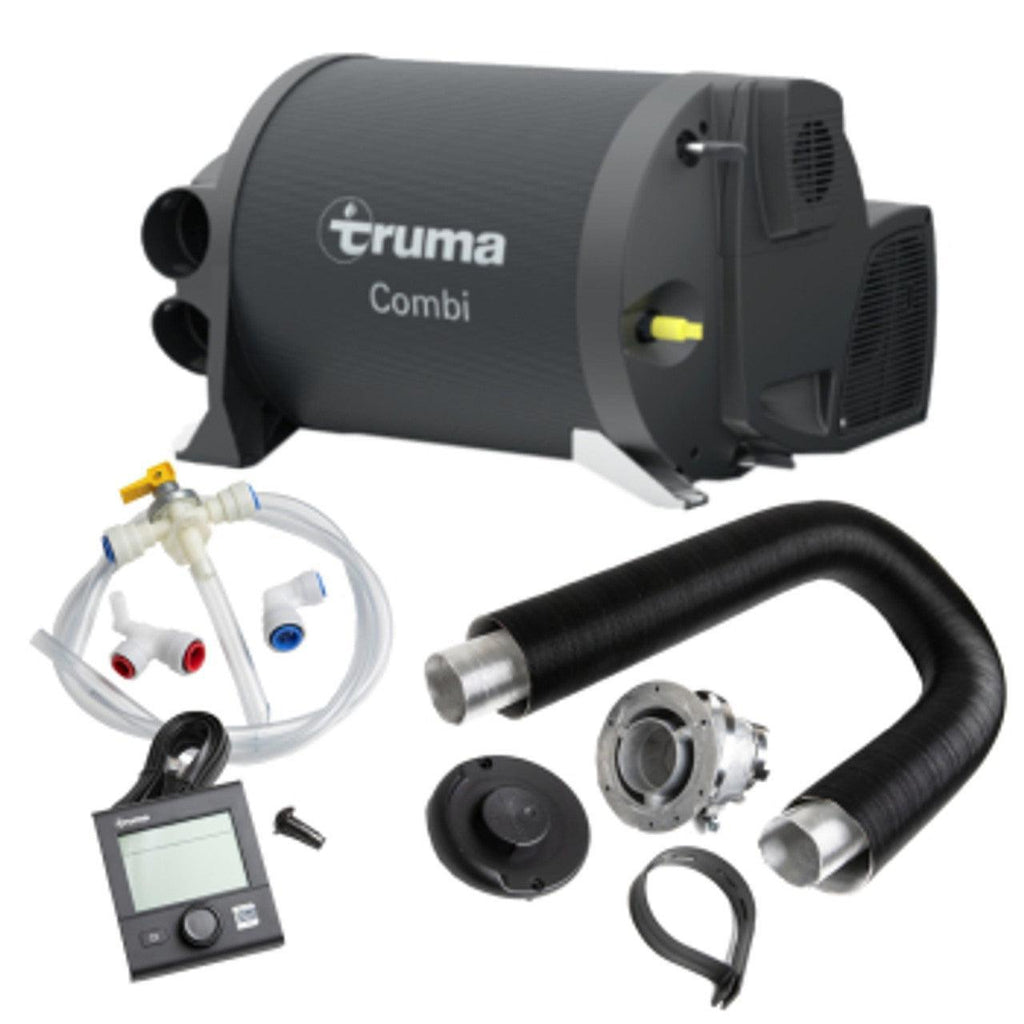

Included in the Kit:
- Truma Combi 4E LPG gas and 230V electric unit
- Truma CP Plus digital control panel
- 6m control panel cable

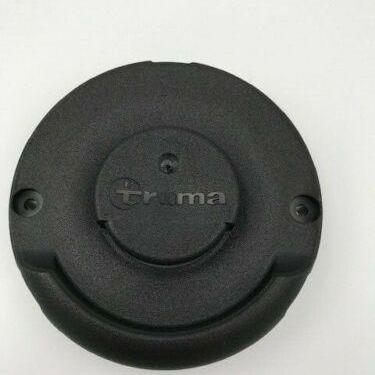

- Black or white wall cowl
- 100cm pipe set
- John Guest connection kit - water fittings & fuel pump
Ducting Kit - Sold Seperately
Technical Specification:
- Heater model: Truma Combi 4E
- Dimensions (L x W x H): 510 x 450 x 300 mm
- Installation dimensions (L x W x H): 540 x 500 x 350mm**
- Weight (when empty of water): 15.1kg
- Heating time (from 15°C to 60°C) (Water only): Approx. 20min.
- Heating time (from 15°C to 60°C) (Heater + Water): Approx. 80min.
- Rated thermal output (Electric): 900/1800W
- Rated thermal output (Gas): 2000/4000W
- Rated thermal output (Electric & Gas Combined): 3800W
- Fuel consumption (Gas): 160–320 g/h
- Water capacity: 10 litres
- Air flow rate: Max. 287 m3/h
- Power consumption (at 230V): 3.9A / 7.8A
- Power consumption (at 12V): Heating up boiler 0.2A up to temporary max. of 5.6A (average approx. 1.1A)
- Water pressure: MAX 2.8 Bar
- PLEASE NOTE: Ducting and blown air outlet vents may be required in addition to what you receive in the 4E kit, however, quantities can vary per installation.
In addition to the installation dimensions, extra space must be provided as appropriate for the gas and water connections as well as the drain valve.
