Description
The Truma Combi 4E is a highly versatile heater that combines warm air and hot water in one compact, lightweight unit.
Designed for campervans, caravans and motorhomes, it delivers reliable heating through gas, electric or mixed operation, giving you complete flexibility whether touring or staying at a campsite with mains hook-up.
Its powerful fans distribute warm air evenly through four outlets, ensuring fast and consistent comfort throughout your vehicle. At the same time, the integrated 10-litre stainless steel water tank provides hot water for washing and showering. In summer mode, you can heat water independently without running the space heater – saving energy while keeping things practical.

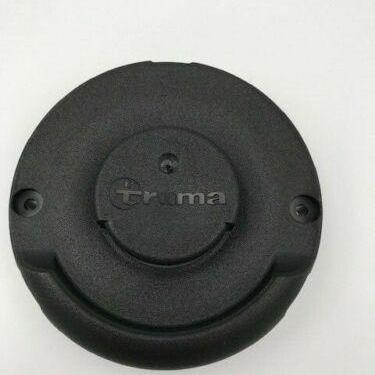

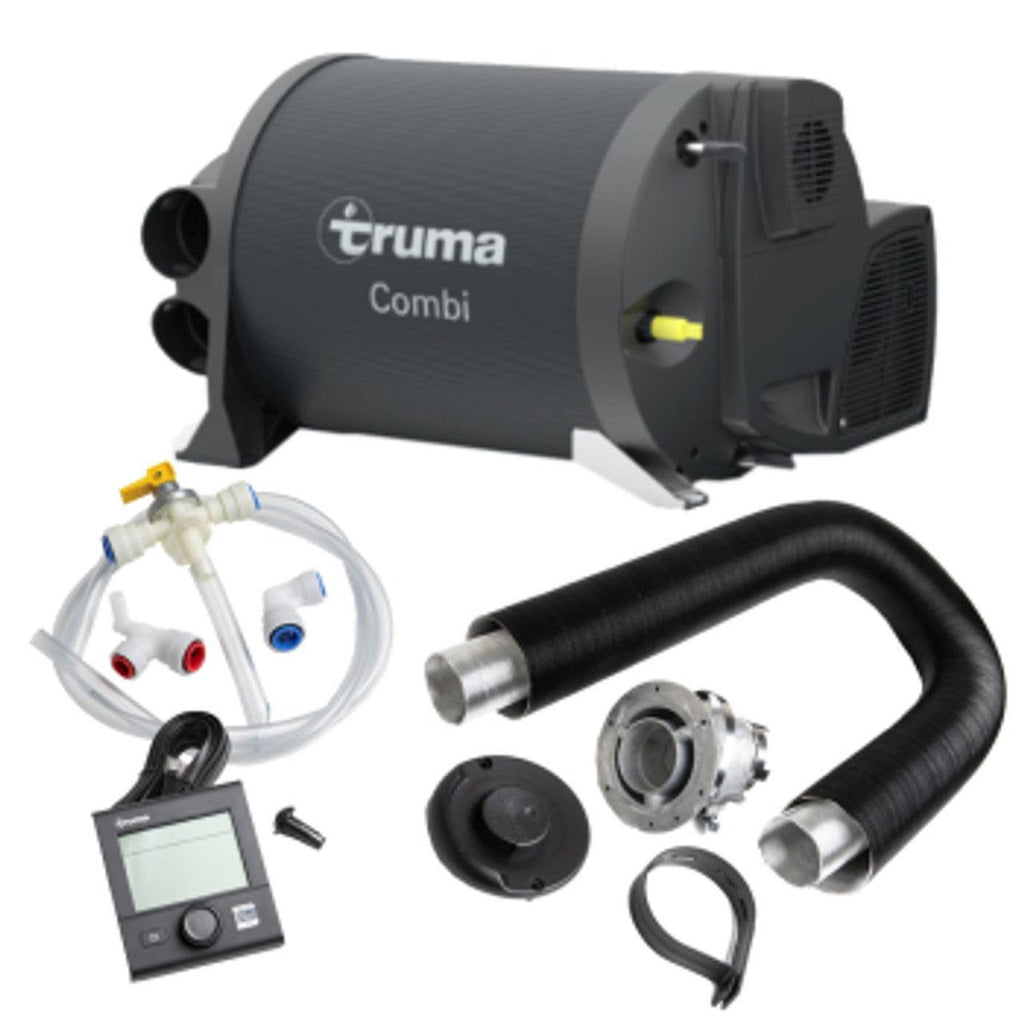

The Combi 4E is quiet, economical and space-efficient, making it an excellent choice for compact installations. It also offers compatibility with automatic climate control when paired with a Truma air conditioner, ensuring effortless year-round comfort. The kit includes the iNet digital control panel, black cowl, Combi 4E unit and JG water fittings, so you have everything needed for installation.
Please note that ductings and outlets for this product are sold separately.
Key Features:
- Energy sources: Propane / butane + electricity
- Water capacity: 10 litres
- Weight: approx. 15.5 kg
- Dimensions (L x W x H): 510 x 450 x 300 mm
- Installation dimensions: 540 x 500 x 350 mm
- Heating time water container (15 °C to 60 °C): approx. 23 min
- Heating time heater and water container: approx. 80 min
Full Technical Specification:
- Energy sources: Propane / butane + electricity
- Operating pressure: 30 mbar
- Rated heat output in gas mode: 2000 W / 4000 W
- Rated heat output in electric mode: 900 W / 1800 W
- Rated heat output in mixed mode: max. 3800 W
- Fuel consumption: 160 – 335 g/h
- Power consumption (at 12 V): operation of heater and water container: max. 6.5 A for short periods (average approx. 1.2 A)
- Power consumption (at 12 V): heating water container: max. 0.4 A
- Power consumption (at 230 V): 3.9 A / 7.8 A
- Air flow rate (free blowing) with 4 warm air outlets: max. 287 m³/h
- Quiescent current
- Quiescent current consumption CP plus (optional): 3 mA
- FrostControl heating element (optional): approx. 1 mA
- Water capacity: 10 litres
- Pump pressure: max. 2.8 bar
- System pressure: max. 4.5 bar
- Heating time (from approx. 15 °C to approx. 60 °C): Water container: approx. 23 min.
- Heating time (from approx. 15 °C to approx. 60 °C): Heater and water container acc. to EN 15033 approx. 80 min.
- Weight: approx. 15.5 kg
- Dimensions (L x W x H): 510 x 450 x 300 mm
- Installation dimensions (minimum dimensions – additional space must be provided for the gas connection, water connections and drain valve (L x W x H) depending on the installation situation): 540 x 500 x 350 mm
