Description

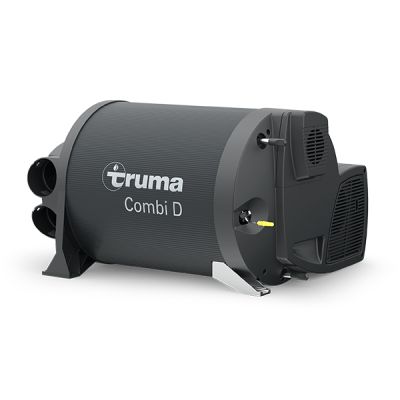

Individual, energy-efficient, self-sufficient – the Combi D 4 E
The Combi D 4 E is structurally identical to the Combi D 4, the only difference being the integrated electric heating elements. The diesel version is equipped with a high-quality burner and therefore reliably heats the vehicle while driving.
At the camp site, simply switch over to electrical mode and run the heater with 230 V, with no need for the vehicle battery. Depending on the required output, choose between diesel, electric or mixed mode: in milder weather, set the appliance to electrical mode, on colder days to diesel mode and in extremely cold weather use mixed mode – diesel and electrical mode. Through four air outlets, the warm air flows into the vehicle where it is distributed optimally.
The powerful Combi D 4 E heats small and medium-sized vehicles within a short time. The appliance also has a 10-litre water tank, which is heated at the same time when hot water is required. This means that you do not need an additional water heater, which saves space and weight. The Combi heater is also very compact and offers many different installation options.
The Combi D 4 E is controlled and monitored with the digital Truma CP plus (iNet ready) control panel or via the iNet X System.
- Can also be operated with an empty water tank
- Simple operation with the digital Truma CP plus (iNet ready) control panel or via iNet X System
- Optimum warm air distribution via four air outlets
- 10-litre stainless steel water tank
- Compact and space-saving, various installation options
- Heats the vehicle and water very quickly
- Uses little energy
- Integrated pressure sensor automatically controls the combustion air infeed
- Long service life thanks to efficient combustion control
- Automatic climate control possible in combination with a Truma air conditione
- Heat Hybrid: integrated electric heating elements for additional electrical power
- 2 in 1: heats your vehicle and heats water at the same time
- For small and medium-sized vehicles
Technical
-
Technical:
-
Energy sources – diesel as per en 590
-
Rated heat output in gas mode – 2000 w / 4000 w
-
Rated heat output in electric mode – 900 w / 1800 w
-
Rated heat output in mixed mode –
-
Fuel consumption – 220 – 630 ml/h (110 ml/h with average heat output of 1000 w)
-
Power consumption (at 12 v): operation of heater and water container – 1,8 – 4 a (in normal operation between “off” and “lowest operating level” less than 1.8 a)
-
Power consumption (at 12 v): heating water container – max. 1.8 a
-
Power consumption (at 230 v) – 3.9 a / 7.8 a
- Quiescent current – approx. 1 ma
Supplied with iNet control panel, exhaust ducting, black cowl, jg water fittings and 6m data cable.
** internal ducting, fittings and outlets sold separately**
